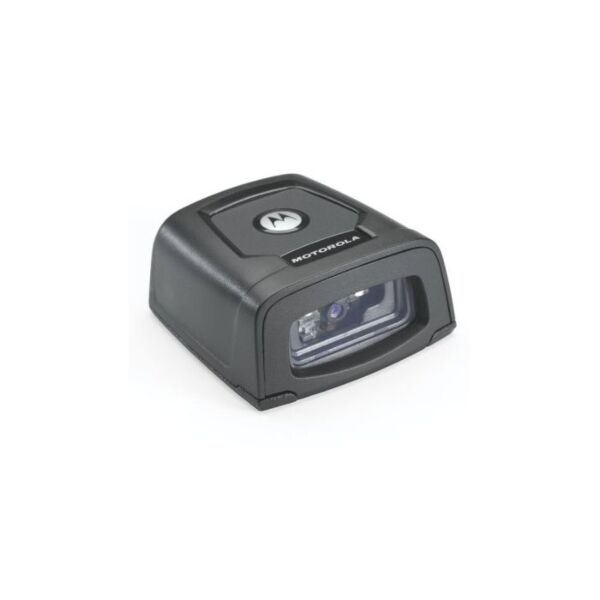

Zebra DS457 Fixed 2D Imager Barcode Scanner - DS457-SR4U6S02AZW
$560.00
DS457-SR4U6S02AZW - Zebra DS457 Fixed 2D Imager Barcode Scanner
| SKU | ZEBRA-DS457-SR4U6S02AZW |
| Brand | Zebra |
| Condition | Refurbished |
| Availability |
In stock
|
| Weight | 0.2 |
Need multiple units of ZEBRA-DS457-SR4U6S02AZW or planning a bulk purchase? Call us at (754) 732-9110 or submit a bulk quote request. Our team will work with you directly to provide the most competitive pricing and tailored solutions for your business.
DS457-SR4U6S02AZW - Zebra DS457 Fixed 2D Imager Barcode Scanner
Specifications:
Technical Specifications
| General Information | |
| Manufacturer Part Number | DS457-SR4U6S02AZW |
| Brand Name | Zebra Technologies |
| Product Type | Fixed-Mount 2D Imaging Barcode Scanner |
| Series | Zebra DS457 Standard Range (SR) family, bundled kit SKU: base scanner (DS457-SR20004ZZWW) + 6 ft straight USB cable (CBL-58926-04) - a discontinued, end-of-life kit; Zebra-listed replacement is DS5502-SR4US70MAZW |
| Specifications | |
| Scan Engine | 2D imager, 752 x 480 grayscale sensor, 624 MHz processor |
| Field of View | 39.6 degrees horizontal / 25.7 degrees vertical |
| Connectivity | 9-pin D-sub connector; USB or TTL-level RS-232 (both supported over the same connector); 6 ft straight USB cable included |
| Power | 5 VDC +/-10% @ 450 mA max |
| Environmental Rating | IP54; withstands multiple 30 in (76 cm) drops to concrete; ambient light tolerance up to 96,900 lux |
| Operating Temperature | -4 to 122 degrees F |
| Physical Characteristics | |
| Dimensions | 1.15" x 2.3" x 2.44" (2.92 x 5.84 x 6.2 cm) |
| Weight | 0.24 lb |
Key Features
Bundled kit combining the DS457 Standard Range scanner with a ready-to-use 6 ft USB cable (manufacturer product description)
IP54-rated housing withstands repeated drops to concrete
Wide field of view suited for kiosk, OEM, and industrial line-scan integration
End-of-life kit - Zebra-listed replacement is the DS5502-SR4US70MAZW
