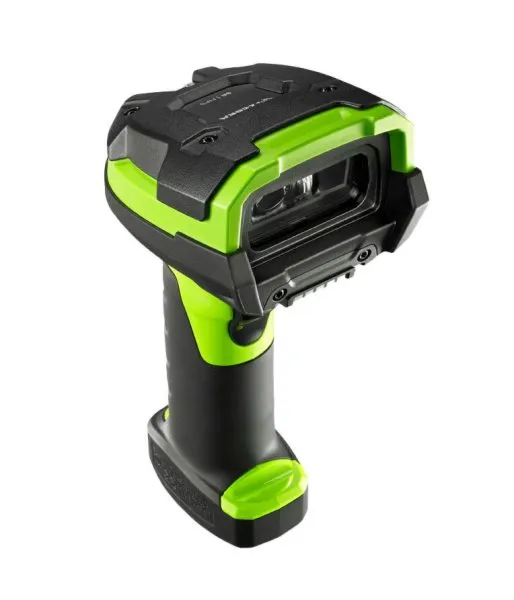

Zebra DS3608-DPA Handheld Barcode Scanner - DS3608-DPA0002VZWW
$1,755.00
DS3608-DPA0002VZWW - Zebra DS3608-DPA Handheld Barcode Scanner
| SKU | ZEBRA-DS3608-DPA0002VZWW |
| Brand | Zebra |
| Condition | Refurbished |
| Availability |
In stock
|
| Weight | 0.7 |
Need multiple units of ZEBRA-DS3608-DPA0002VZWW or planning a bulk purchase? Call us at (754) 732-9110 or submit a bulk quote request. Our team will work with you directly to provide the most competitive pricing and tailored solutions for your business.
DS3608-DPA0002VZWW - Zebra DS3600-DPA Corded Barcode Scanner 1D/2D Imager Rugged SCANNER ONLY Handheld Direct Part Marking Vibration Motor IP65 and IP67 Green
Specifications:
Technical Specifications
| General Information | |
| Manufacturer Part Number | DS3608-DPA0002VZWW |
| Brand Name | Zebra Technologies |
| Product Type | Ultra-Rugged Corded Barcode Scanner |
| Series | Zebra DS3608-DPA (Direct Part Marking reader, scanner only, vibration-motor good-read feedback, gray, worldwide) |
| Specifications | |
| Scan Engine | 2D CMOS area imager, 1280 x 960 px, 655 nm laser aimer |
| Symbology Support | 1D (Code 39/128/93, Codabar, MSI, UPC/EAN, GS1 DataBar), full 2D (PDF417, Data Matrix, QR, Aztec, Han Xin), and Direct Part Marking (DPM) codes |
| Scan Angle | Skew 60, Pitch 60, Roll 360; field of view 46 horizontal / 30 vertical |
| Reading Range | Code 39 (3 mil): 0.5-4.7 in; Data Matrix (10 mil): 0.1-4.9 in |
| Connectivity | USB, RS-232, keyboard wedge, Industrial Ethernet (EtherNet/IP, PROFINET, Modbus TCP) |
| Durability | 8 ft (2.4 m) drop to concrete; 5,000 tumbles at 1 m; IP65/IP67 rated |
| Operating Temperature | -30C to 50C |
| Physical Characteristics | |
| Dimensions | 7.3" x 3.0" x 5.2" (18.5 x 7.7 x 13.2 cm) |
| Weight | 0.68 lb |
Key Features
Reads Direct Part Marks (laser-etch, dot-peen, ink-jet) in addition to standard paper barcodes, suited for automotive and aerospace traceability (manufacturer product description)
IP65/IP67 sealed ultra-rugged housing withstands harsh industrial environments
Vibration-motor good-read feedback works in loud manufacturing floors
Industrial Ethernet connectivity (EtherNet/IP, PROFINET, Modbus TCP) integrates with plant systems
Extreme operating temperature range from -30C to 50C
